Yaesu FLDX-400

No reviews yet
Discussion
1 / 3

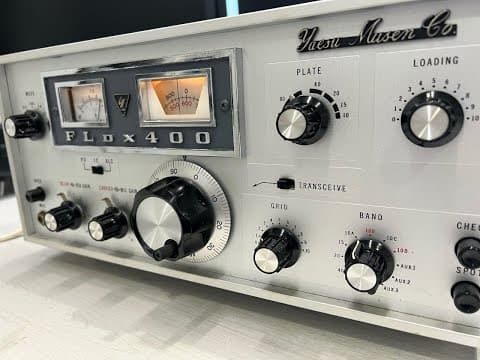

Yaesu FLDX-400Front view
Radio serviceAmateur radio
Form factorBase station
Release year1967
Frequency bandsHF
Bands80m40m20m15m10m
Power240 W
ModesAMSSBCW
Frequency range
Transmit3,5-4,1, 6,9-7,5, 13,9-14,5, 20-21,5, 27,9-28,5, 28,5-29,1, 28,9-29,5, 29,5-30,1 MHz
Weight18 kg
Dimensions (W×H×D)368 x 165 x 292 mm

Description

The Yaesu FLDX-400 is a large tube transmitter from the late 1960s that, with a 12BY7A driver and two 6JS6C final tubes, delivers up to 240 W PEP on SSB (also 240 W on CW) across eight bands between 80 and 10 meters, with an optional FSK mode. Paired with the visually matching FRDX-400 receiver in its distinctive chrome housing, it formed one of the well-known "Chrome Coffin" twin sets from Yaesu's early era. An unusually high 750 W input figure is listed for AM operation, which looks implausible next to the other power ratings and is likely a transcription error.

Highlights

240 W PEP on SSB/CW across eight bands from 80-10 metersPart of the well-known "Chrome Coffin" transmitter/receiver pair with the FRDX-400Two 6JS6C final tubes, 12BY7A driverOptional FSK operating modeDistinctive chrome-plated housing, 18 kg weightSource's AM power figure (750 W) looks implausibly high, likely a source error

Downloads

Download datasheet (PDF)

Community video tips

3 videos uploaded3 videos

Yaesu FLdx 400 HF TRANSMITTER

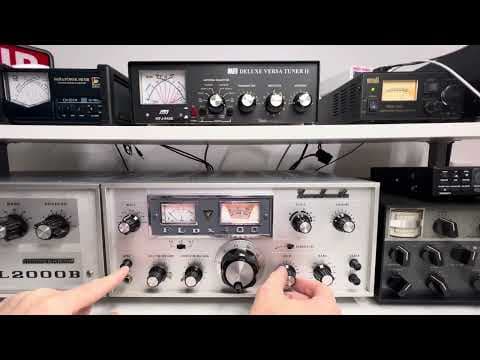

Yaesu FLDX 400 tuning and power output across bands - 100W to 170W output power
Yaesu FLDX400 transmitter Repair/Restoration.
