Icom IC-505

No reviews yet
Discussion
1 / 3
Icom IC-505Front view
Radio serviceAmateur radio
Form factorHandheld
Release year1985
Frequency bandsHF
Bands6m
Power10 W
ModesSSBFMCW
Weight3.2 kg
Dimensions (W×H×D)230 x 76 x 189 mm

Description

The Icom IC-505 is a portable 6-meter amateur transceiver for SSB and CW operation, with an optional FM module available. It covers the full 50–54 MHz band and delivers up to 10 watts of RF output power. The unit runs on nine D-cell batteries or an external 13.8V DC supply and features six battery-backed memory channels.

Highlights

Battery operation with nine D-cells or external 13.8V supplySix battery-backed memory channelsOptional FM add-on module with switchable dual-conversion receiveChoice of built-in telescopic whip antenna or SO-239 connector

Downloads

Download datasheet (PDF)

Community video tips

1 video uploaded1 video

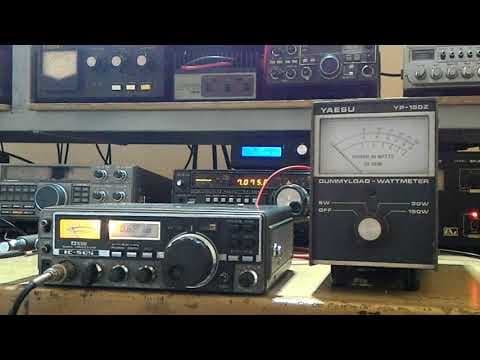

ICOM Ic-505 50Mhz test
