Icom IC-04AT
1 / 3

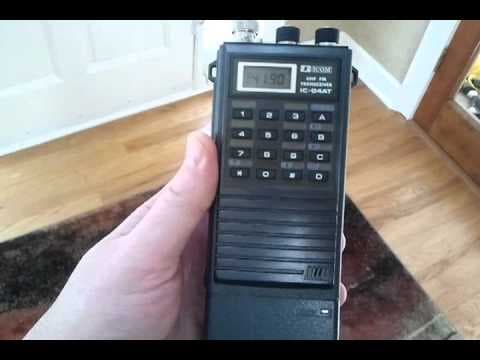

Icom IC-04ATFront view
Radio serviceAmateur radio
Form factorHandheld
Release year1983
Frequency bandsUHF
Bands70cm
Power5 W
ModesFM
Weight0.515 kg
Dimensions (W×H×D)65 x 117 x 35 mm
Description
The Icom IC-04AT is a portable handheld transceiver for the 70 cm amateur band, produced from 1983 to 1990. It operates exclusively in FM mode and delivers 2.5 to 5 watts of output power, with a low-power setting of 500 mW. Featuring a double-conversion superheterodyne receiver, seven memory channels, and a backlit display, it is well suited for repeater operation with variable frequency shift.
Highlights
Downloads
Community video tips
1 video uploaded1 video
Reviews
Discussion
Questions, problems, experiences – talk with other operators about this radio. Just write in your own language.
No posts yet – ask the first question or share your experience.
